Visual-Inertial SLAM via EKF on SE(3)

UC San Diego, ECE 276A: Sensing & Estimation in Robotics · Winter Quarter 2026

Code  |  Report

Overview

This project implements visual-inertial SLAM using an Extended Kalman Filter operating on the Lie group SE(3). The system fuses high-frequency IMU velocity measurements with stereo camera observations of point landmarks to jointly estimate the robot trajectory and a sparse 3D map. The pipeline is decomposed into four tasks: IMU dead reckoning, feature detection and tracking (extra credit), landmark mapping with a fixed trajectory, and full joint pose-landmark SLAM.

Data collected by Clearpath Jackal robots navigating MIT's campus, provided by Prof. Nikolay Atanasov as part of ECE 276A. Available at the course SharePoint.

Task 1: IMU Dead Reckoning

The IMU pose is propagated using exact SE(3) kinematics with variable timesteps computed directly from UNIX timestamps. Covariance is propagated via the adjoint of the body-frame twist. Process noise was tuned down to σ² = 10^-6 from the TA-suggested 0.1, treating the IMU as near-perfect and reserving camera observations for small drift corrections only.

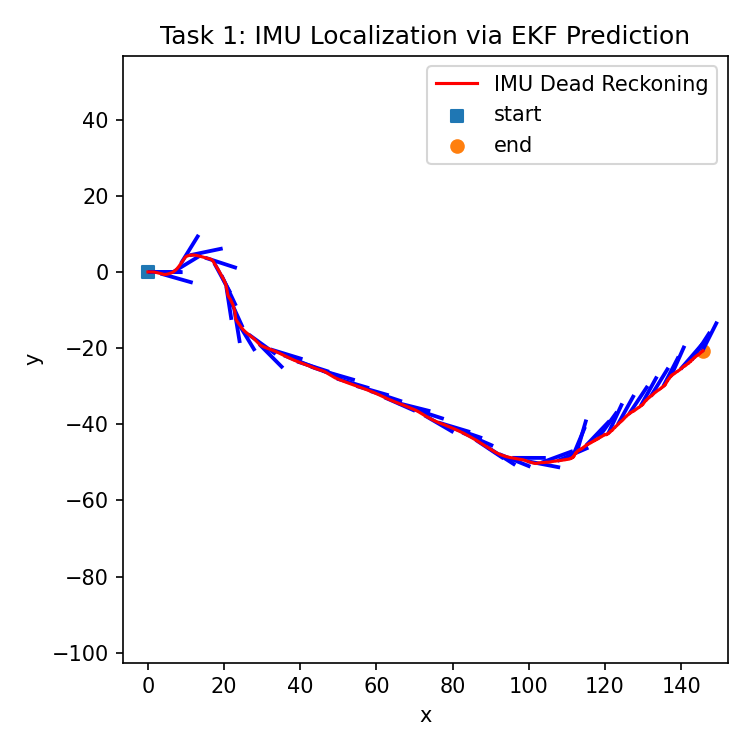

Dataset00: curved path (~150 m)

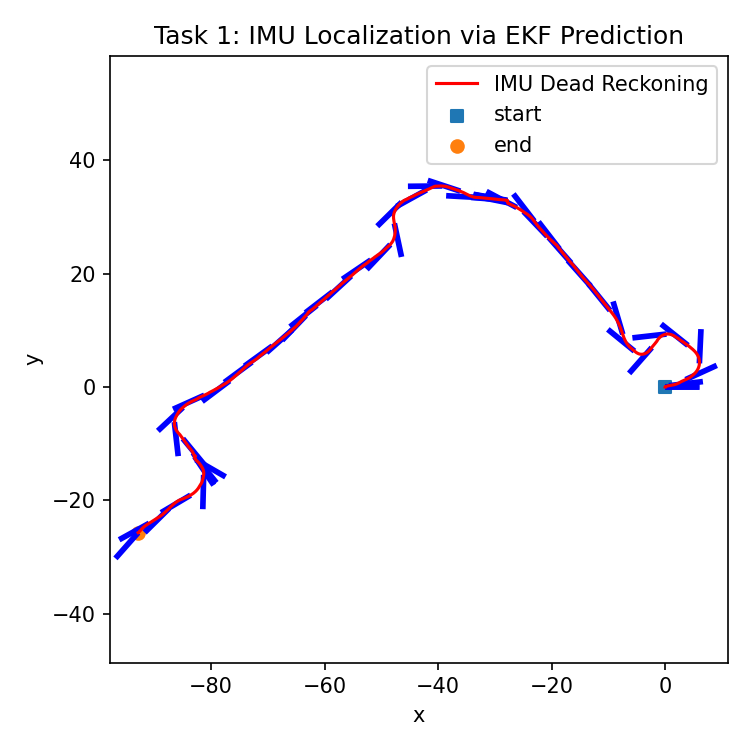

Dataset01: longer arc

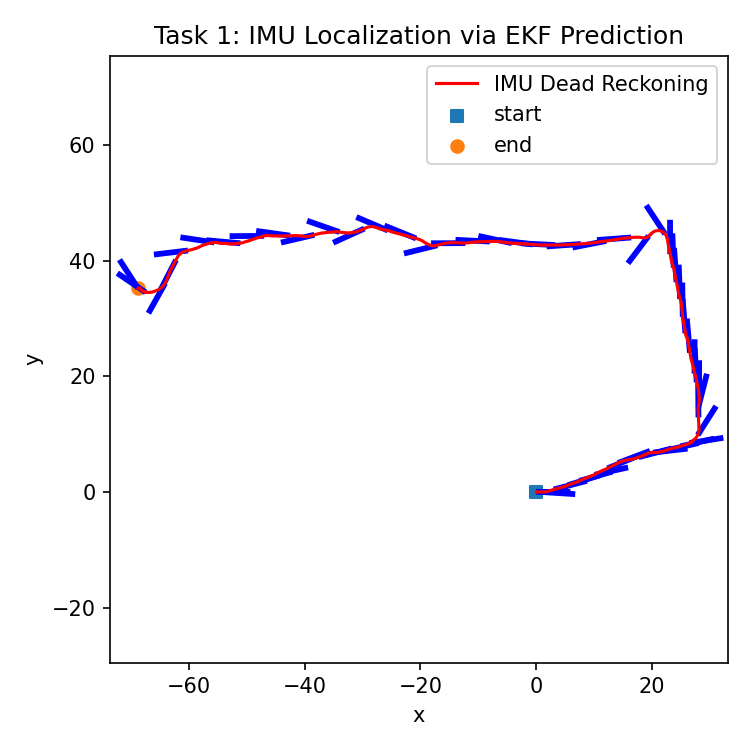

Dataset02: L-shaped path

Task 2: Feature Detection and Tracking (Extra Credit)

Dataset02 provides no pre-computed features, so a full stereo feature tracker was implemented from scratch. Shi-Tomasi corners are detected every 5 frames in the left image. Temporal tracks are maintained via Lucas-Kanade pyramidal optical flow. Stereo correspondences are found by running optical flow from left to right image, filtered by positive disparity and an epipolar constraint (|v_L - v_R| ≤ 2 px). A total of 19,559 unique feature tracks were computed across 6,393 timesteps.

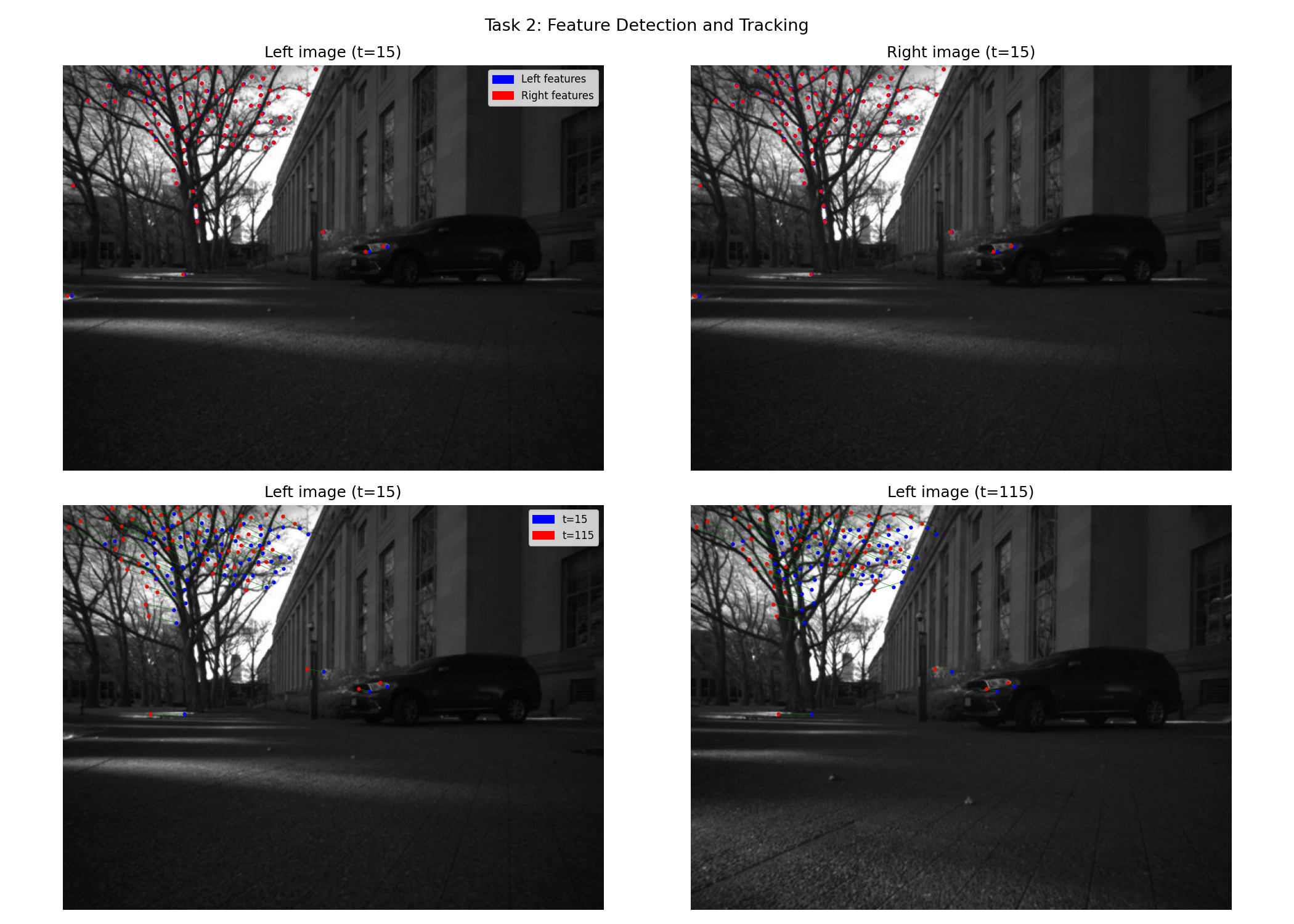

Top: stereo matches at t=15 (blue = left camera, red = right camera). Bottom: temporal tracks from t=15 (blue) to t=115 (red).

Task 3: Landmark Mapping

With the IMU trajectory fixed from Task 1, landmark positions are estimated using per-landmark 3x3 EKF updates from stereo observations. Each landmark is initialized via stereo triangulation at its first valid observation. Three robustness filters were added beyond the lecture formulation: a minimum disparity gate (2 px) to avoid near-zero-depth instability, a maximum depth cap (50 m) to reject far noisy landmarks, and an innovation gate (50 px) to skip bad observations.

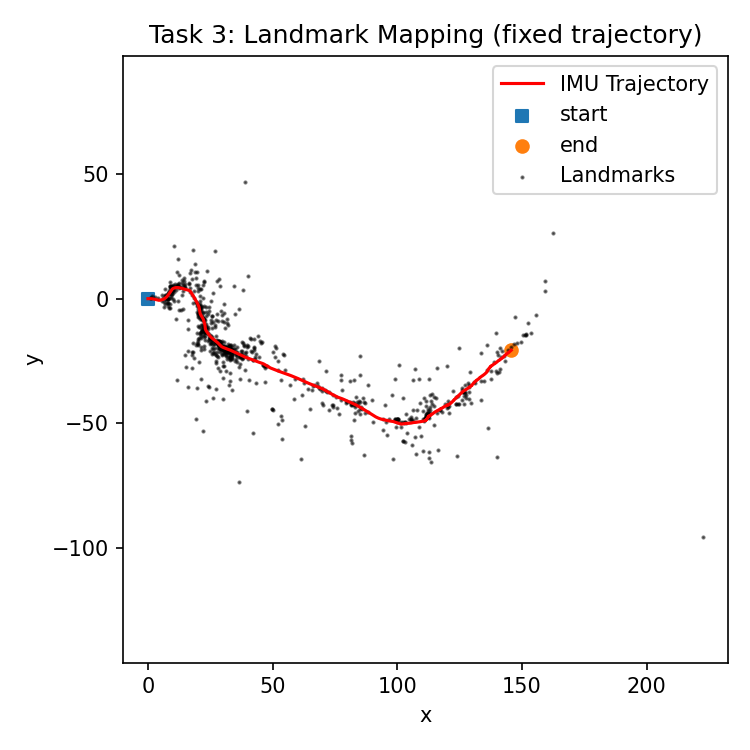

Dataset00: landmark map (black dots) along IMU trajectory (red)

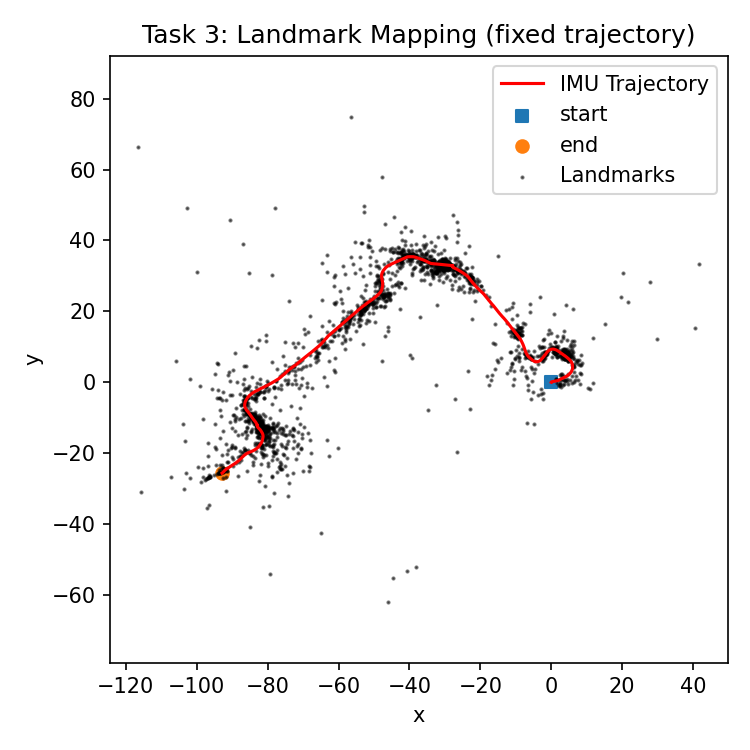

Dataset01: landmark map along IMU trajectory

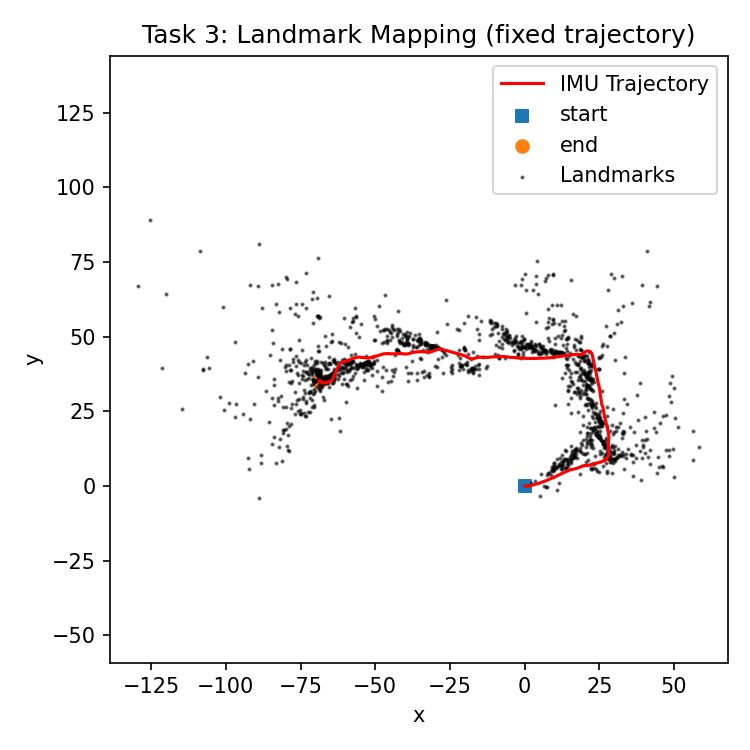

Dataset02: landmark map along IMU trajectory

Task 4: Visual-Inertial SLAM

The full VI-SLAM system combines the IMU prediction step with a joint pose-landmark EKF update. The joint covariance is stored as a SciPy sparse matrix. The Joseph stabilized covariance update replaces the standard (I - KH)Σ form, which is necessary for sustained numerical stability as state dimension grows. New landmarks are initialized on-the-fly from the corrected pose.

Two additional robustness filters were added for Task 4: a tighter innovation gate (20 px, vs 50 px in Task 3) since a bad observation now directly corrupts the pose via the cross-covariance block, and a pose correction gate that skips the entire update if ||δξ|| > 0.3 to guard against degenerate linearizations.

In both datasets the SLAM trajectory (blue) visibly corrects the IMU-only estimate (red). Dataset00 shows reduced y-bias; dataset01 shows a more compact arc consistent with the IMU overestimating curvature.

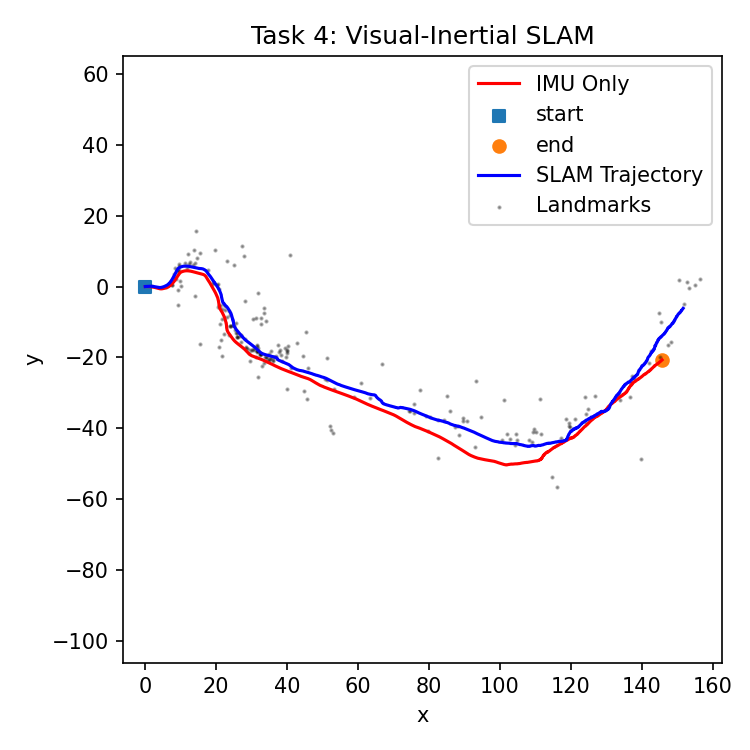

Dataset00: IMU-only (red) vs. SLAM-corrected (blue) with landmarks (gray)

Dataset01: SLAM correction pulls the arc inward relative to dead reckoning

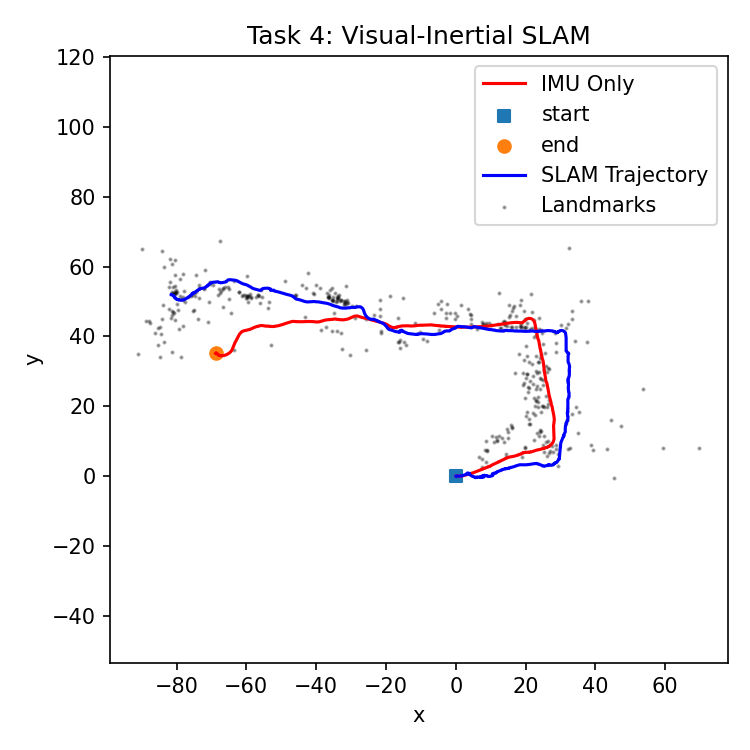

Dataset02: SLAM trajectory follows the L-shape more precisely
